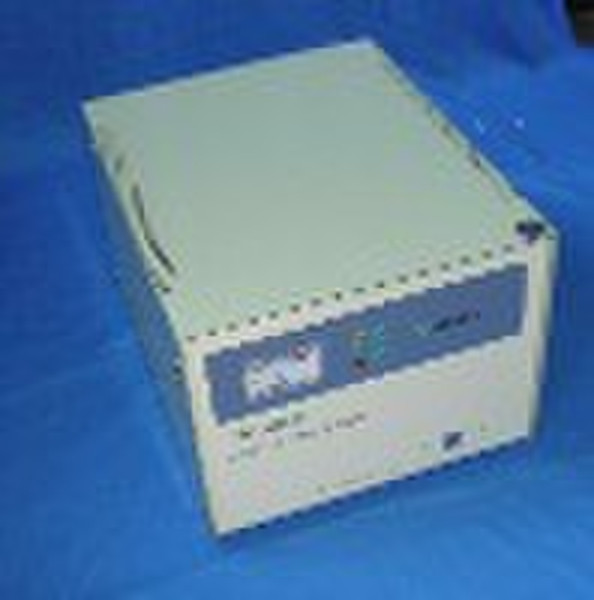

TND Series Single Phase Servo-motor Type High Accu

1.Introduction TND series automatic voltage stabilizer consists of contact voltage regulator,sampling control circuit and servomotor as well.It has excellent features,such as small waveform distortion,high efficiency,high power factor,free from the effect or frequency variation of supply.It can bewidely used in most situations where the voltage stabilization is required. 2. Specification Input voltage150V-250VOutput voltage220V±3%, 110V±3%Frequency50H/60HzResponse time<1sec.(against 10% input voltage deviation)Efficiency>90%Ambient temperature-10oC ±40oCRelative humidity<90%Waveform distortionNon-lack fidelity waveformPower factor cosØ0.8Insutalion resistance>5MΩ 3.Customer's requirement welcome.
